Item specifics
  • Model Number: 10/100M
  • Model Number: Photoelectric converter
  • Quantity: 1PCS
  • Protection class: IP40
  • Operating temperature : -40°C~85°C
  • Place of Origin: China
  • Optic mode: single / multimode
  • Power: 5W
  • Optic wavelength: 850nm, 1310nm, 1550nm
  • Rate: 10/100M
Product Description

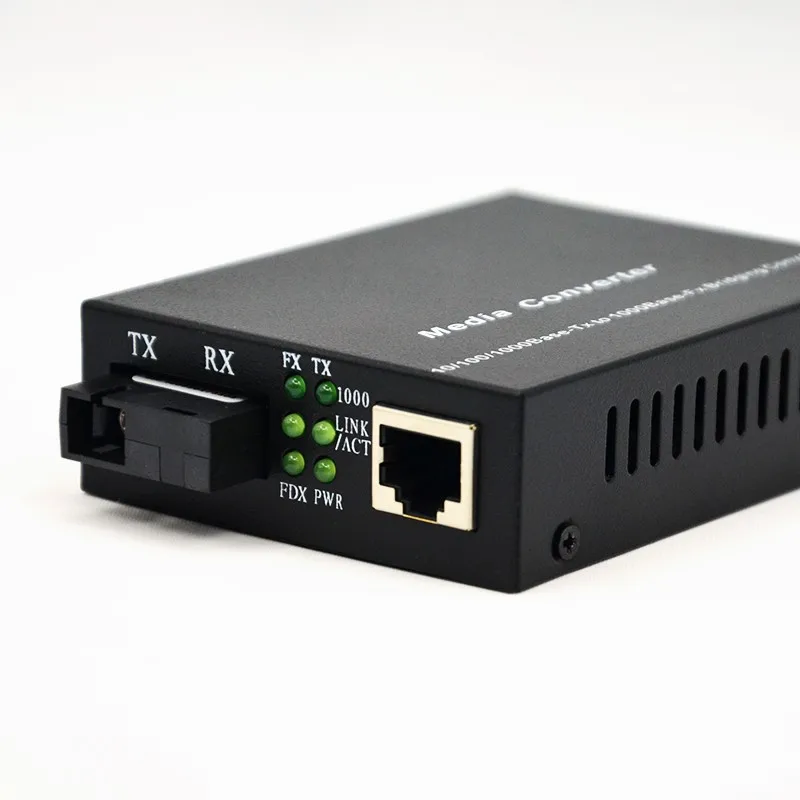

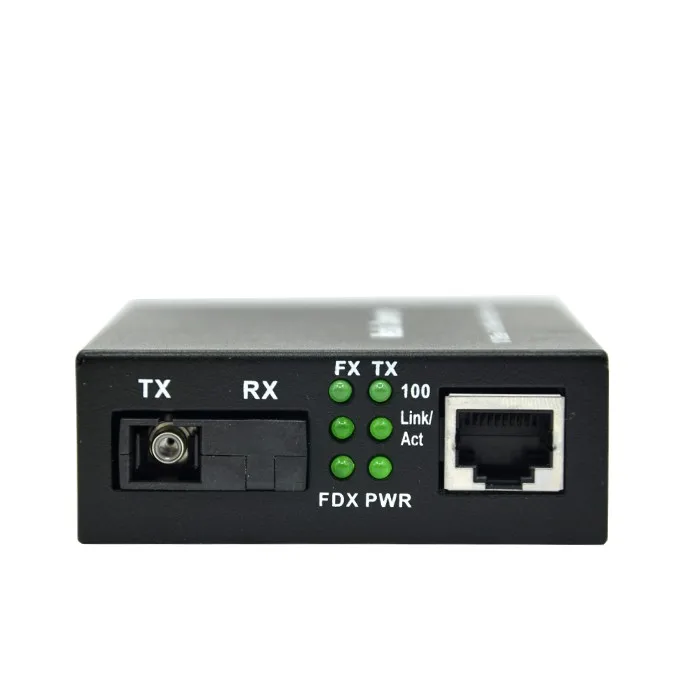

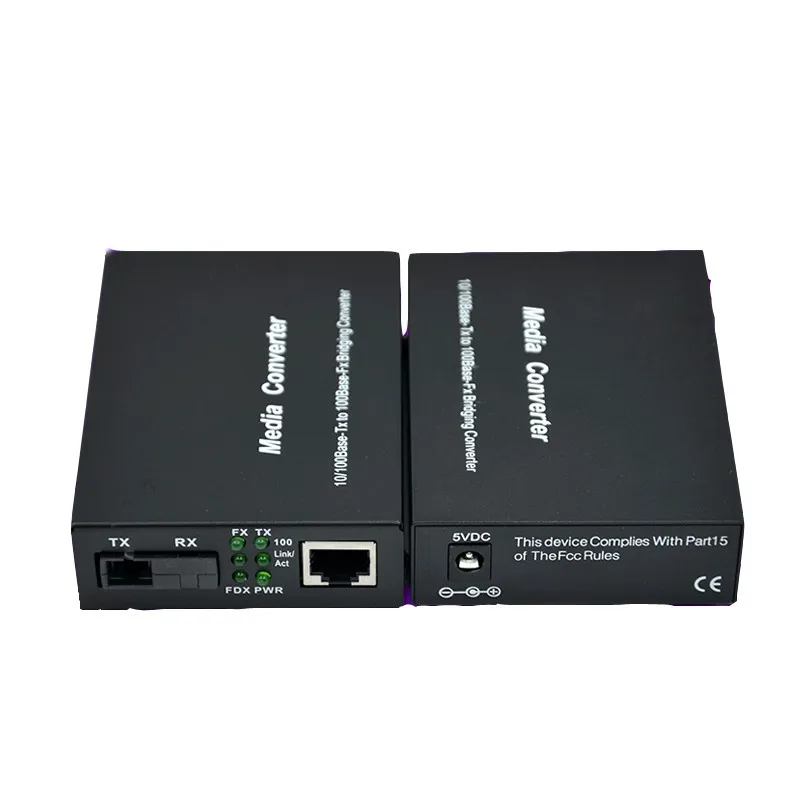

1double 10/100M  1 light 1 RJ45  Fiber Optic Media Converter Singlemode fiber optic transceiver 25KM Free shipping

I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping,  most secure way to deliver the goods to your hands!  If you have any questions after receiving the product,  or have quality problems,  please do not panic,  do feel free to submit disputes, please contact our customer service,  we will give you the most satisfactory answer!  Happy shopping, thank you very much

Product Attributes

100M fiber transceiver
10/100M cassette singlemode fiber optic media converter module wavelength 1310nm 25km
100M fiber transceiver:
According with IEE802.3U,100Base-TX and 100Base-FX standard.
Support 1 SC fiber port for multimode/singlemode and 1 RJ-45 port.
Modular configuration design(can be centralize in chassis).
50/125um and 62.5/125um multimode fiber link transmission distance up to 2km.
9/125um singlemode fiber link transmission distance up to 120km.
Support storage transmission and direct connection mode.
Built-in 288KB buffer,storage transmission support 2046Bytes,direct connection mode. support unlimited package.
Support full-duplex/half-duplex working mode.
Port support Auto-MDI/MDIX Auto Flip
LED indicator dynamix feedback link signal, fault monitoring.
Support hot-swappable, plug and play.
Support LFP function, automatically detect the link,fored ethernet link interruption when detected in each of interface disconnected.
Built-in lightning circuit, significantly reduce the damage caused by thunderbolt induction.

Specification:
Access methods:10/100Mbps
Standard:IEEE802.3,IEEE802.3u,10/100Base-TX,100Base-FX Fast Ethernet, IEEE802.3x Flow control
Wavelengh:1310nm/1490nm/1550nm
Transmission distance:multimode 0.55km/2km  singlemode 20km/40km/60km/80km/100km/120km.
Interface:SC/ST (50/125um,62.5/125um multimode) SC/FC(9/125um singlemode)
Conversion mode:media conversion,strorage transmission/direct connection.
MAC address:1K
Buffer:288KB
Error rate:<1/1000000000
LED indicator:POWER,TX Link/ACT(Twisted-pair link),FDX(ethernet full-duplex),FX Link/Act(fiber link), FX100(fiber 100M transmit speed),TX100(Twisted-pair 100M transmit speed).
Power supply:DC5V 1A(external power supply);AC220V 0.5A(built-in power supply).
Power Consumption:<0.25W.
Operating temperature:0~50degree
Storage temperature:-40~70degree
Humidity:5%~90%(no condensation

Connect type: SC
Fiber type: single mode
Wavelengh: 1310nm
Typical distance: 25KM
Min TX PWR: -9.0dBm
Max TX PWR: -3.0dbm
Sensitivity: <-31dbm
Link budget: 22.0dbm
