Item specifics
  • Brand Name: TRANSBETTER
  • Item: 1310/1550nm OTDR
  • Centre wavelength: 1310/1550nm
  • Fiber : Singlemode
  • Dynamic Range: 32/30dB
  • Connector: FC/UPC

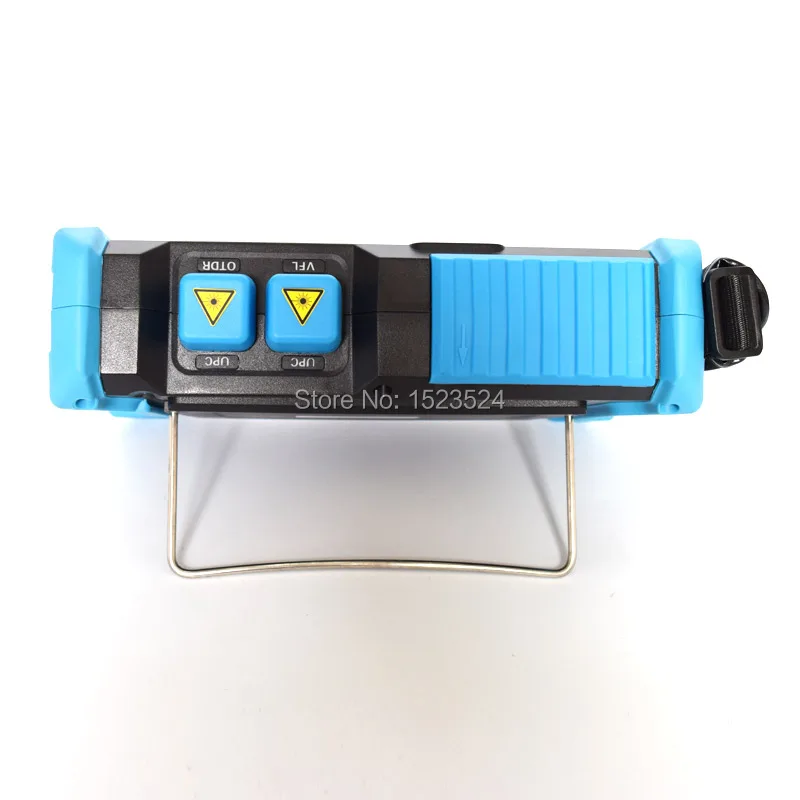

  • Built in VFL: Yes
Product Description

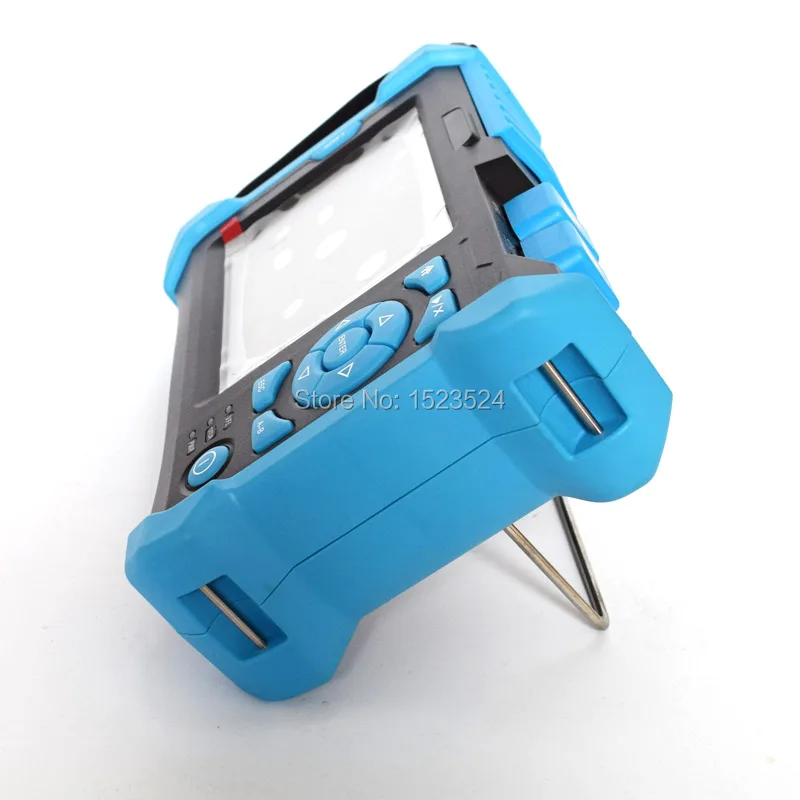

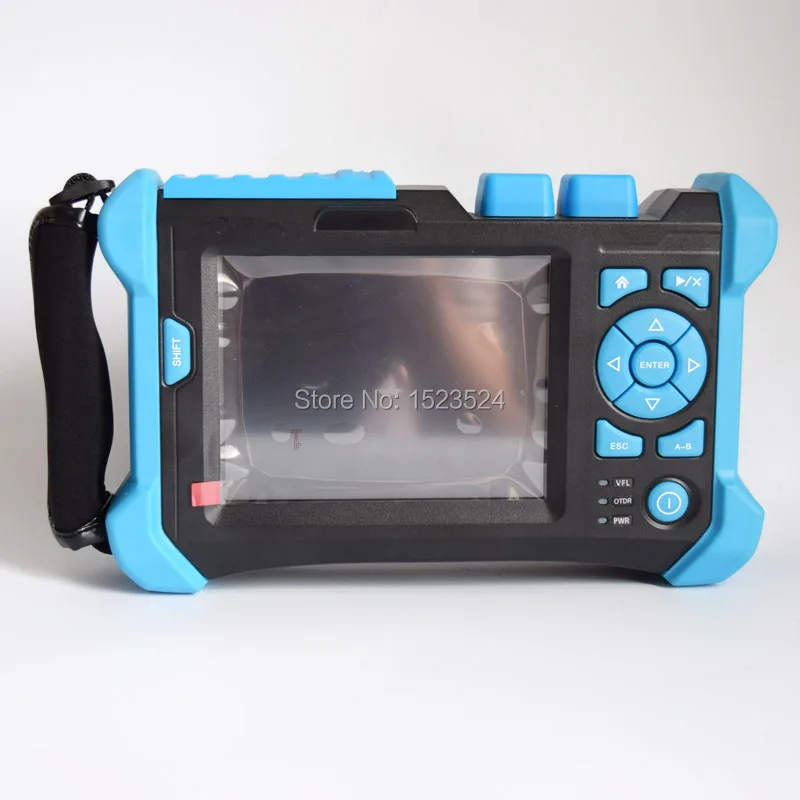

32/30dB SM 1310/1550nm OTDR Optical Time Domain Reflectometer Fiber Optic OTDR with Built-in VFL Touch Screen



Features:

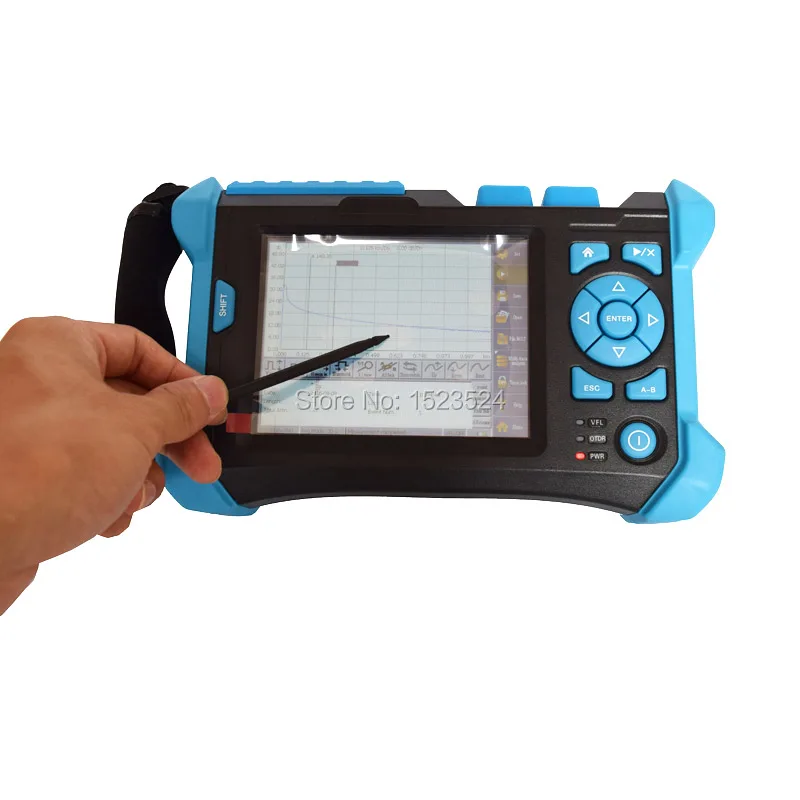

Large touch screen + shortcut keys, easy to operate.
Large-capacity polymer lithium battery, with superlong working hours.
Intelligent testing, simple use, powerful function.
Media of Memory Card + SD card, with superlarge storage capacity of traces.
Able to meet FTTx testing needs
Several wavelengths can be chosen.
Solid casing design, dustproof and shockproof.
18 months\' warranty period provids you a great after service.

Applications:

Telecommunication construction and maintenance
Cabling System
Other fiber-optics projects
CATV construction and maintenance
Optical components production and research

Specifications:


Technical Specifications
Wavelength (nm) 1310/1550
Dynamic range (dB) 32/30
Pulse width (ns) 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Event blind zone (m) 2m
Attenuation blind zone  9m
Linearity (dB/dB) ±0.05 dB/ dB
Loss threshold (dB) 0.05
Loss resolution ratio (dB) 0.01
Sampling resolution ratio (m) 0.125 to 8
Sampling point 32K
Distance uncertainty  (m) ±(1 m + 5×10-5× distance + sampling interval)
Typical real-time refreshing duration (s) 0.2
Memory capacity of trace SD Card (2G), > 10000 pieces
Duration of measurement Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
General specification
Dimension (H×W×D) 150×235×66
Temperature Running temperature -10°C to 50°C
Memory temperature -40°C to 70°C
Relative humidity 0% to 95% (non condensation)
Power supply Lithium battery; continuing working duration ≥ 8 hours
Warranty period 12 months

Remarks: 1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.

2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.

3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.




Package:

Carrying Case
OTDR with Battery Pack
Calibration & Test Report
SD Card
FC connector
Belt
AC Adaptor
Power Supply
User Manual & Trace Manage Software (CD)
