Item specifics
  • Brand Name: TRANSBETTER
  • Model Number: HTB-GS-03
  • Color: Gray
  • Transmission Distance: 20KM
  • Fiber Connector: SC
  • Power: External power
  • Fiber: Duplex
  • Mode: Singlemode
  • Max. Data Transfer Rate: 1000 Mbps
  • Wavelength : 1310nm
Product Description

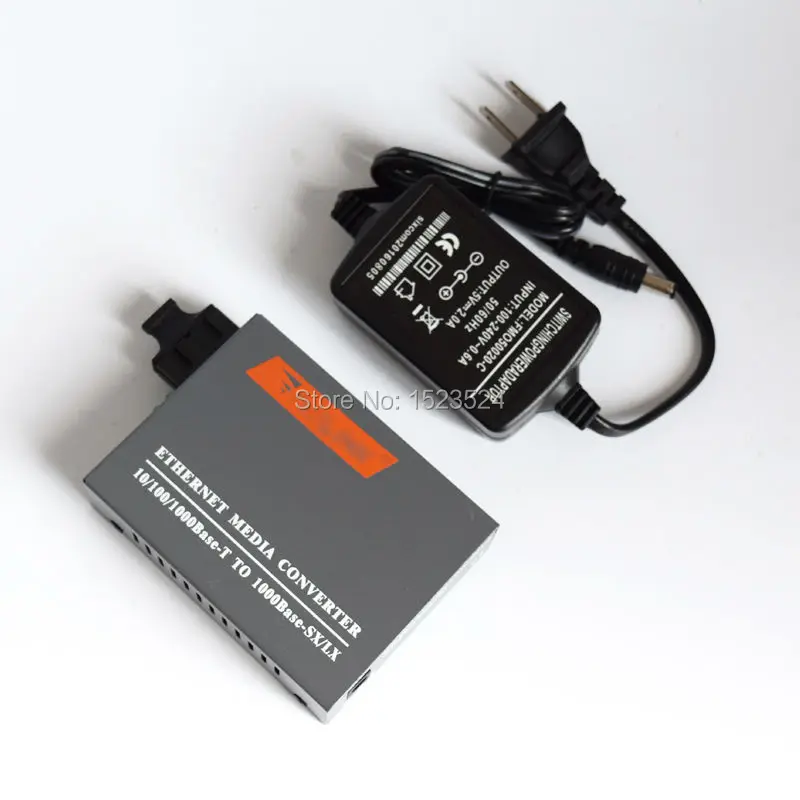

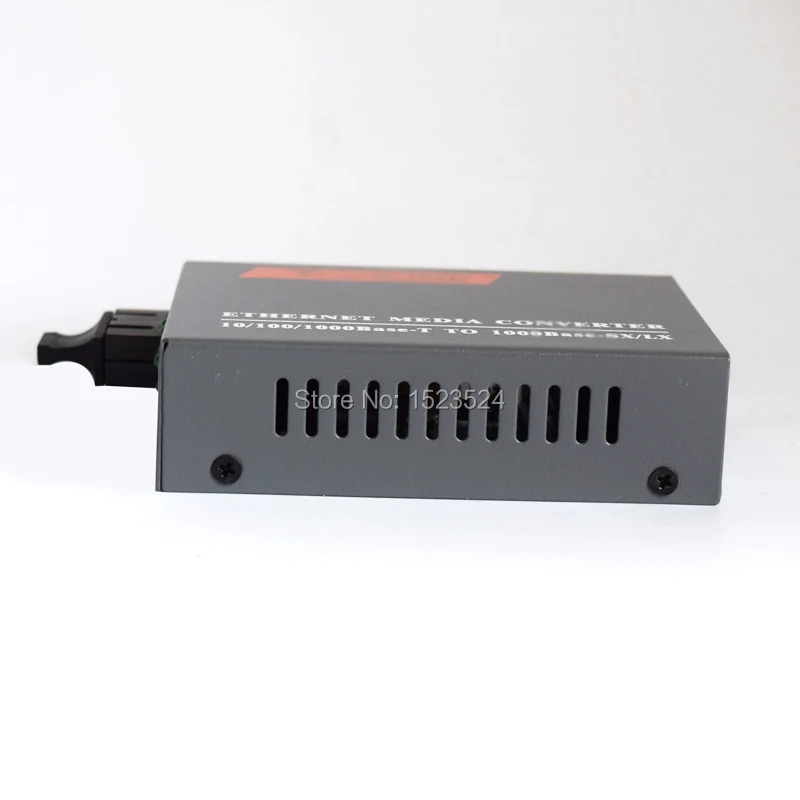

Free Shipping HTB-GS-03 Gigabit Fiber Optical Media Converter 1000Mbps Single Mode Duplex SC Port 20KM External Power Supply


Welcome  to our  store


Our Target:


High Quality , Best Service ,Fast Respond

Welcome to China market,you can direct buy goods from China.I am glad you are interested in our items,we are the professional supplier in China, hope we can have good business here.

Shop announcement:

When you order the items,can select any items from my store together.
Top quality ; Competitive price ; Fast shipping;Drop shipping available;Best and Timely Service;100% Satisfaction ;Big discount for big order.


Warmly welcome to do Drop Shipping and Wholesale


  • Provide dual SC fiber connector and one UTP connector
  • Fully Complies with IEEE802.3z/AB 1000Base-T/SX/LX/ZX.
  • Auto-detection of half/full duplex transfer mode for Tx port
  • Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for Tx port
  • Provide switch configuration of half/full duplex transfer mode for Fx port
  • Extend fiber distance up to 20km
  • 6 LED display for Power, FDX/Col, FX (Link/Act), TX (Link/Act), FX 1000, TX 100
  • Easy-to-view LED indicators provides status to easily monitor network activity
  • External power supply
  • Power adapter:5V 2A



IEEE802.3 10BASE-T Ethernet

IEEE802.3u 100BASE-TX/FX Fast-Ethernet

IEEE802.3z/ab 1000BASE-FX/TX 1000M-Ethernet

RJ-45 Port  Auto-MDI/MDIX
Fiber Port Fiber Type Wavelength Send-Power
SC 1310nm SMF: -20dBm(min.)    0dBm(max.)
Frequency Offset ±125,000bps (or ± 100ppm)
MTU More than 9036 bytes
Dimensions(WxDxH) 94x71x27mm (External power)
Input Voltage DC5V2A( External power input : AC100V-AC240V/50-60HZ )
OperationTemperature 0°C~70°C
Store Temperature -40°C~85°C
Humidity 5%~95% non-condensing
Weight 0.3kg/Piece (External Power)

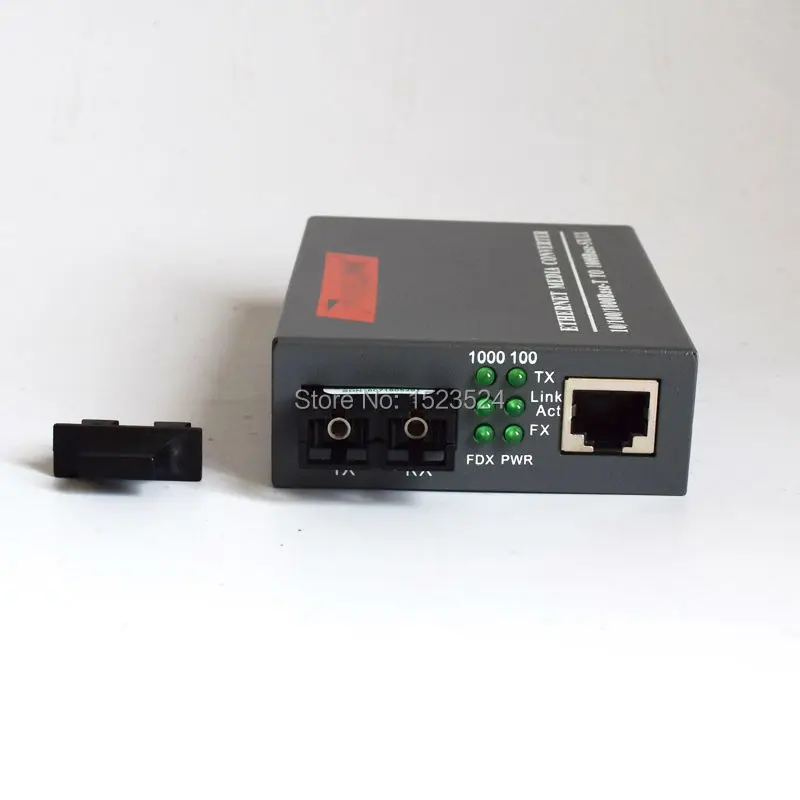

LED Description:
LED Colour Function
FX 1000 Green Lit when 1000Base-FX operation
FX Link/ACT Green Lit when fiber cable connection with remote device is good. Bliks when any FX traffic is present
Power Green Lit when +5V Power is available
FDX/Col Green Lit when full duplex mode is enabled. Blinking when collision is present
TX 100 Green Lit when 100Base-TX cable operation
TX Link/ACT Green Lit when TP cable connection with remote device is good. Blinks when any traffic is present
b c d e f h g i j a
Default Plug
EU Plug
Package includes:
1. Ethernet Media Converter*1pcs
2. Power Adapter (pls tell us your power adapter , or we\'ll send default adapter)
