Item specifics
  • Brand Name: TRANSBETTER
  • Model Number: TB-GS20
  • Color: Black
  • Transmission Distance: 20KM
  • Fiber Connector: SC
  • Power: External power
  • Fiber: Duplex
  • Mode: Singlemode
  • Data Rate: 10/100/1000M
  • Wavelength : 1310nm
Product Description

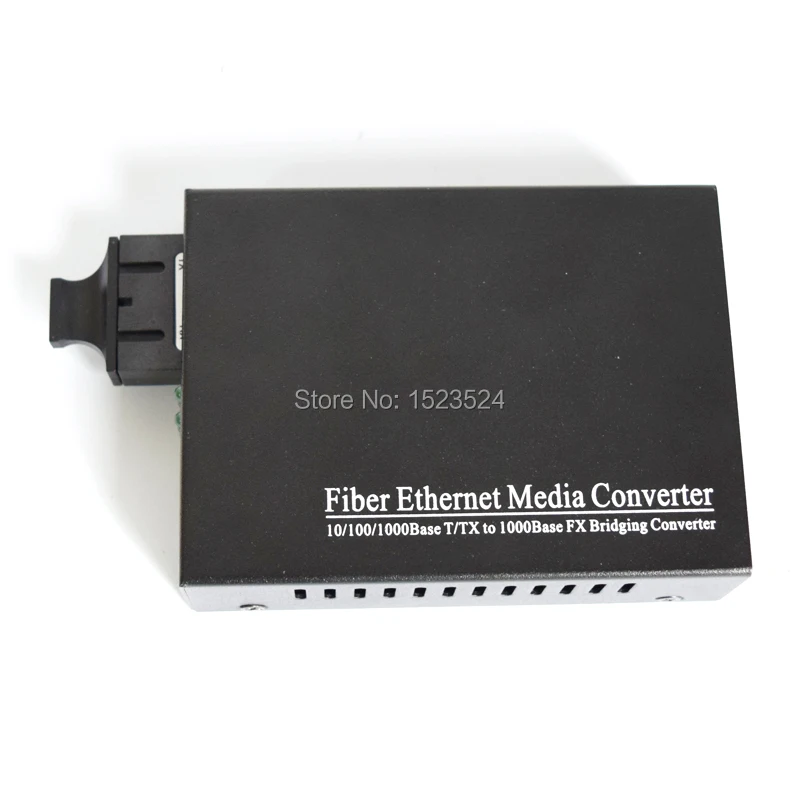

High Quality Dual Fiber Media Converter SM 20km SC Gigabit Fiber Optical Media Converter 1000Mbps Single Mode Duplex SC 20KM



Note:Can print your logo on the shell of the media converter if bulk order , if you need , you can contact us , printing fee is 20 USD for first time , then free for second time and future .

Descriptions:

We produce a new media converter mainly for foreign market , it is a kind of intelligent, adaptive and fast Ethernet converter devices. It can implement data transmission between twisted pair electrical signals and optical signals which are the two types of network connection media.This kind of media converter can extend the transmission distance to 0.55 kilometers(multimode) or 120 kilometers(single mode). Using media converter is an economical solution to achieve long distance transmission base on current status.


Features:

In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree
MDI/MDI-X Auto Negotiation
Supports 2U 19” System Chassis , holds up to 14pcs standalone type media converter or 16pcs card based media converter
Hot Pluggable & Wall-Mountable
Stable performance more than 50thousand hours with fault-free
Unique IC solution applied
Supports10/100/1000M full/half duplex, easy upgrades
Supports VLAN transmission
Stable performance more than 50 thousands hours with fault-free
In conformity with safety code of FCC, CE and RoHS.

Specifications:

1.Support IEEE 802.3z/AB 1000Base-T/SX/LX/ZX
2.Connector:1 UTP RJ45 connector ,1 SC duplex connector.
3.Operation Model:full duplex or half duplex mode.
4.Power Supply parameter:

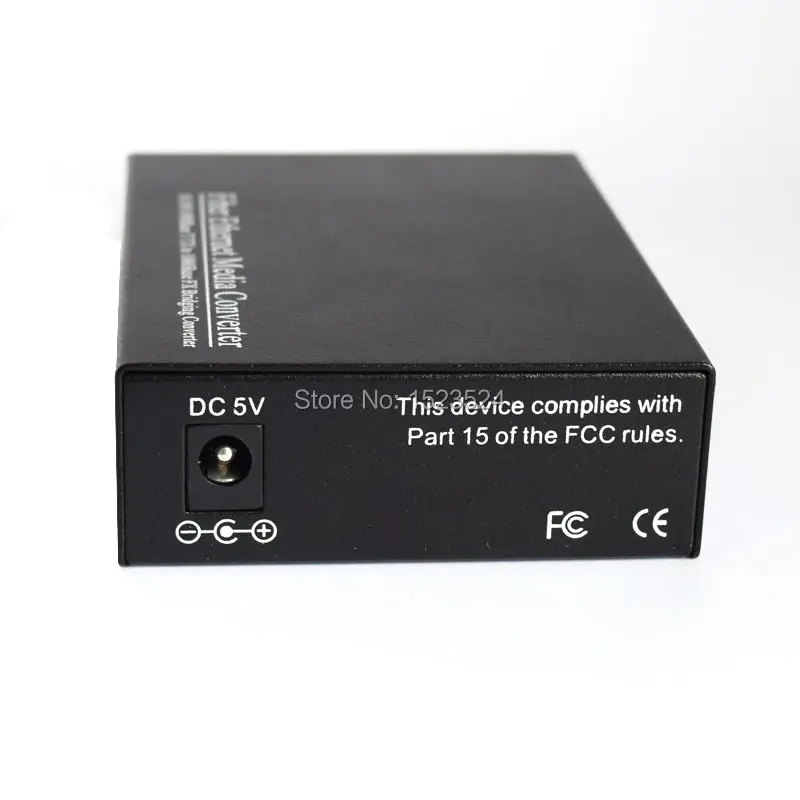

  Outside:DC 5V1A
5.Operating environmental temperature:0°C~60°C
6.Relative humidity:5%~90%
7.TP cable: Cat5 UTP cable.
8.Transfer fiber:
multimode:50/125,62.5/125 or 100/140um
single mode:8.3/125,8.7/125,9/125 or 10/125um
9.Dimension:94×70.5×26.5(mm)

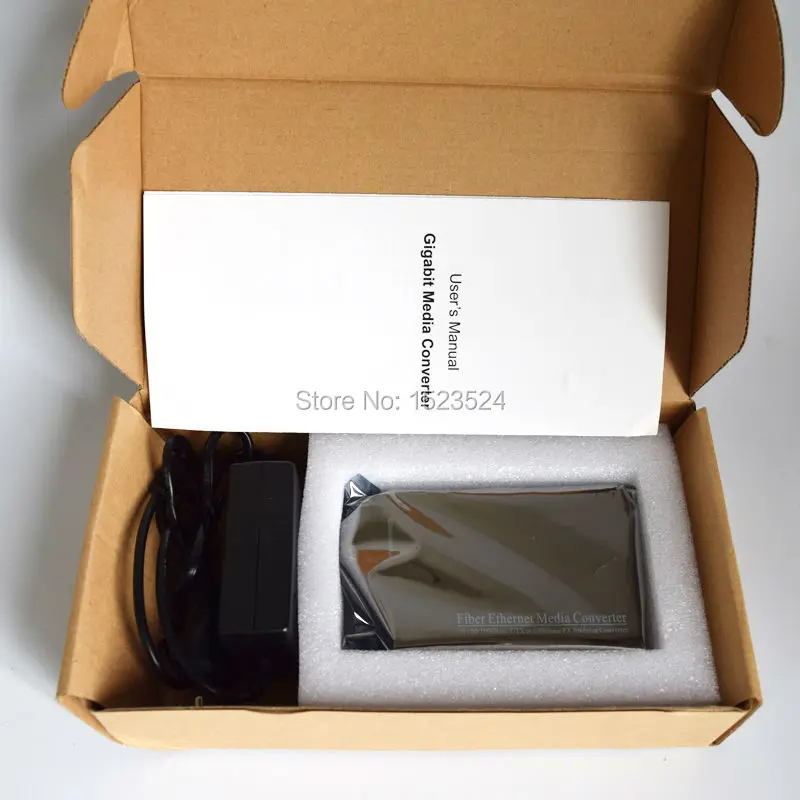

Packing List:

Media Converter 1 pcs

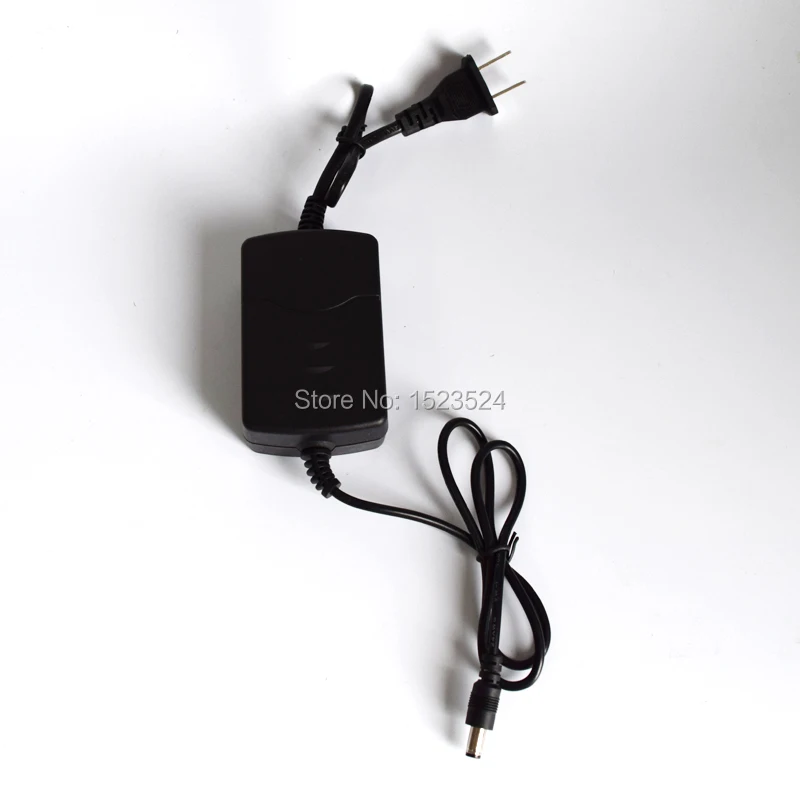

Power Adapter (EU,US,UK available)
English User Manual
4-3 4-4 4-5 4-6 4-8 4-2 1-8 1-9 1-10

EU plug , US plug , UK plug avaliable , please contact us before place the order .
1-13 1-14 1-15
